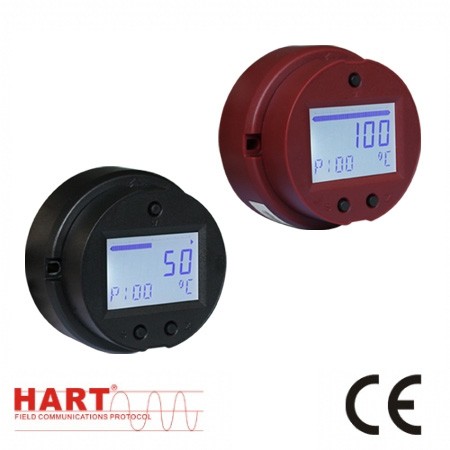

Field Temperature Transmitters TMT272

Release date:2018-10-24 14:37:02

Specifications:1)Galvanic isolation 2000VAC2)Operation: HART-protocol3)OEM Smart Temperature transmitter for Resistance thermometers(RTD), thermocouples(TC), resistance and voltage transmitters, with

Specifications:
1)Galvanic isolation 2000VAC
2)Operation: HART-protocol
3)OEM Smart Temperature transmitter for Resistance thermometers(RTD), thermocouples(TC), resistance and voltage transmitters, with continuously rotatable backlight LCD display
4)Wide voltage supply range
5)Expanded resistance input (max 2kΩ;)
6)Expanded voltage input (max 2KmV)

Performance:
* Universal settings with HART-protocol for various input signals
* 2 wire technology, 4 to 20mA analogue output
* High accuracy in total ambient temperature range
* Galvanic isolation 2000VAC
* An internal temperature sensor of active temperature compensation
* Wide voltage supply range
* Customer specific measurement range settings
* Simple and user friendly software
* Multiparametric backlight rotatable LCD display


Technical data:
Output:  4 to 20mA
Supply voltage:10.5 to 45VDC
Input:RTD, TC, Ohm, mV
Influence of ambient:Negligible
Load influence:Negligible
Power supply influence:Negligible
Resolution:0.3uA
Installation:Field Mounted
Operation:PC-programmable
